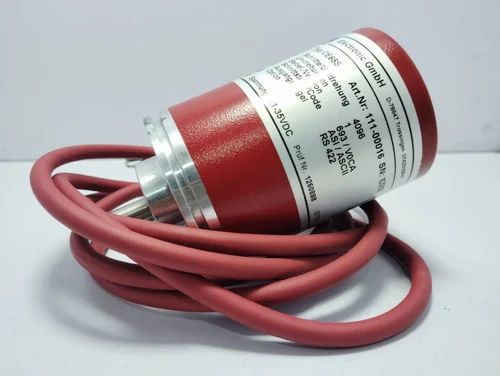

What is the CE 65 encoder?
The CE 65 is an absolute rotary encoder series manufactured by TR-Electronic. It is designed to measure angular position and speed with high precision, providing digital output signals that industrial controllers use to monitor and adjust mechanical systems. Unlike incremental encoders, which only track relative movement from a reference point, absolute encoders retain their position data even after a power cycle, making them essential for safety-critical and high-accuracy applications.
These encoders are typically connected to the drive shaft via an elastic coupling. This connection method compensates for minor axial and radial deviations, protecting the encoder's internal components from mechanical stress while ensuring consistent signal transmission. The CE 65 series is built to handle demanding industrial environments, offering robust performance in sectors such as robotics, machine tools, and automation.
For engineers and procurement specialists, the CE 65 represents a reliable solution for motion control tasks where repeatability and durability are paramount. Its design aligns with standard industry protocols, facilitating easy integration into existing DIN 19258-compliant control systems.
Key technical specifications
The CE 65 series is defined by its absolute position tracking, which eliminates the need for homing sequences after power loss. This makes it a preferred choice for applications requiring immediate position data upon startup. The core performance of these encoders is determined by their resolution, mechanical durability, and the communication protocols they support.
Resolution and Accuracy
Resolution refers to the number of discrete positions the encoder can detect per revolution. The CE 65 series typically offers single-turn resolutions ranging from 12-bit (4,096 positions) to high-precision 14-bit or 16-bit variants (16,384 to 65,536 positions). Multi-turn capability is also a critical specification; many models track up to 4,096 revolutions using a planetary gear train or magnetic multi-turn sensing. This allows the system to maintain position data over extended periods without battery backups in certain configurations.
Higher resolution provides finer control but requires more processing power from the host controller. Engineers must balance the need for precision with the data throughput limits of their control systems. For most industrial automation tasks, 12-bit or 14-bit resolution is sufficient, while robotics and CNC applications often demand the higher density of 16-bit data.
Interface Options
Communication interfaces vary significantly based on the specific model suffix. The CE 65 series supports several protocols, including:
- CANopen: Widely used in factory automation for its robustness and real-time capabilities.
- SSI (Synchronous Serial Interface): A standard for high-speed, deterministic data transfer over short distances.
- Profibus DP: Common in European industrial environments for integration with Siemens and other PLCs.
- Analog/TTL: Basic interface options for simpler control systems.
The choice of interface dictates the wiring complexity and the type of PLC or motion controller required. CANopen models are often favored for distributed I/O systems, while SSI is preferred for simple, high-speed readouts.
Mechanical and Electrical Ratings
Durability is specified by the IP (Ingress Protection) rating. Many CE 65 models are rated IP65 or higher, protecting against dust and low-pressure water jets, which is essential for outdoor or washdown environments. The shaft type—solid, hollow, or blind hollow—must be matched to the application’s mounting constraints.
Electrical specifications typically include a supply voltage range of 10–30 VDC. Power consumption is generally low, but it must be accounted for in the total load of the power supply unit. Always verify the exact suffix code against the manufacturer datasheet, as specific models like the CE-65-M may vary in interface protocols or mounting styles.
Note: Specific models like the CE-65-M vary in interface protocols; always verify the exact suffix code against the manufacturer datasheet.
Verification Checklist
Before procurement, confirm the following against the application requirements:
- Resolution: Does the step count meet the control loop frequency?
- Interface: Is the protocol compatible with the existing PLC or drive?
- Mounting: Does the shaft and flange size fit the mechanical assembly?
- Environment: Is the IP rating sufficient for the operating conditions?
Industrial use cases for CE 65
The CE 65 absolute encoder is built for environments where precision and durability are non-negotiable. Unlike incremental encoders that lose position data during power outages, absolute encoders report their exact angular position instantly upon startup. This capability makes the CE 65 a standard component in systems where downtime is costly and safety is critical.
In robotics, the CE 65 provides the feedback loop necessary for precise joint control. Whether mounted on industrial arms or collaborative robots, it ensures that movement commands are executed with high repeatability. The encoder’s robust housing protects internal components from the vibrations and shocks common in high-speed automation cells.
Packaging machinery also relies heavily on this series. In high-speed filling, labeling, and palletizing lines, the encoder synchronizes the drive shaft with the conveyor motion. As noted by tr-electronic, the CE series connects via an elastic coupling, which compensates for axial and radial deviations. This design feature prevents mechanical stress on the motor and encoder, extending the lifespan of both components in demanding production environments.
Automated Guided Vehicles (AGVs) and mobile robots use the CE 65 for navigation and wheel tracking. Accurate odometry is essential for these vehicles to navigate warehouses and factories without collision. The encoder’s ability to handle industrial-grade conditions ensures reliable performance even in dusty or electrically noisy environments.
Where to Buy CE 65 Encoders
Sourcing the TR Electronic CE-65-M requires distinguishing between authorized industrial distributors and general marketplaces. For critical automation projects, purchasing through verified industrial suppliers ensures you receive genuine components with traceable warranty support. These distributors typically stock the encoder in various shaft and protocol configurations, offering professional support for bulk procurement.
For individual engineers or small-scale replacements, online marketplaces provide immediate access to specific models like the CE-65-M Profibus-DP encoder. When buying from these platforms, verify the seller’s return policy and condition ratings, as listings may include new, surplus, or refurbished units. Always cross-reference the part number to ensure the output protocol matches your system requirements.
As an Amazon Associate, we may earn from qualifying purchases.
CE-65 Encoder FAQ
The CE-65 rotary encoder is an industrial absolute encoder manufactured by TR-Electronic, designed to acquire angular motion and condition measuring data for controllers compliant with DIN 19258 standards. It is a hardware component used in automation, robotics, and manufacturing environments.
Users frequently search for "CE-65" because the acronym overlaps with financial terminology. Below are answers to common questions to clarify the device's technical specifications and distinguish it from unrelated certifications.
